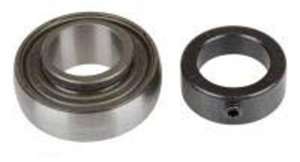

SEALED INSERT BEARING 1-3/16 inch ID – NARROW INNER RING

SKU: SMA-308-RA103RRB Category:

Description

Ball Bearing InsertNarrow Inner Ring – Sealed     Standard Agricultural Applications    RA-RRB SeriesNarrow Inner ring type with self-locking collarPositive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditionsFactory pre-lubricatedSpherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Basic Outer Ring Size206
Bearing I.D.1-3/16"
Bearing O.D.62mm
Bearing TypeInsert Bearing
Bore ShapeRound
BrandTimken
Greasable / SealedSealed
Inner RaceNarrow
Inner Ring Width.938 Inch
Outer Race ShapeSpherical
Outer Ring Width.709 Inch
Shaft Lock TypeLock Collar

Interchanges

  • TPJD9219
  • KMC03-051-002
  • 74415
  • 51284
  • TP-JD9219
  • 71150087
  • 9110330
  • JD9219
  • 834202M1 (AGCO)
  • RA103NPPB
  • 03-051-002
  • AM3096
  • 3096
  • 353161X1
  • 990061
  • 9-90061
  • 3051002
  • 566634R92 (CNH)
  • NPS103RPC
  • 7441-5
  • N3382
  • X5615
  • KMC03051002
