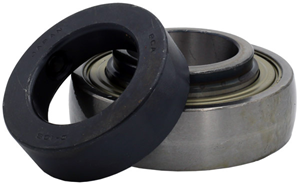

SEALED INSERT BEARING 1-1/2 inch ID – NARROW INNER RING

SKU: SMA-2631-NPS108RPC Category:

Description

NTN Insert Bearing – Narrow Inner RingNPS – RPC   Spherical Outer Ring / SealedNTN-BCA® narrow series locking collar bearings have an inner ring that extends on the locking side and is flush on the opposite side. This design offers a cost effective option for light to medium load applications and is particularly well suited to situations in which limited space is available. Designed for shaft mounting using a “slip fit”, to achieve optimum performance the shaft diameter should be maintained with .001″ of the normal size. NP series bearings are typically supplied with an eccentric locking collar. All bearings and collars conform to the standards for this product as established by ANSI/ABMA standard 15.

Tech Specs

Basic Outer Ring Size208
Bearing I.D.1-1/2"
Bearing O.D.80mm
Bearing TypeInsert Bearing
Bore ShapeRound
BrandNTN
Greasable / SealedSealed
Inner RaceNarrow
Inner Ring Width1.188 Inch
Outer Race ShapeSpherical
Outer Ring Width.827 Inch
Shaft Lock TypeLock Collar

Interchanges

  • 2631NPS108-RPC
  • NPS108-RPC
