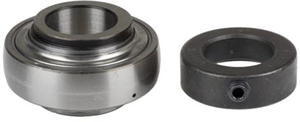

RELUBE INSERT BEARING-1-1/4 inch ID- WIDE INNER RING

SKU: SMA-308-G1104KRRB Category:

Description

Ball Bearing InsertWide Inner Ring – Greasable     Standard Industrial / Agricultural Applications    G – KRRB SeriesWide Inner Ring with Self Locking CollarFor extremely dirty or wet conditionsR-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricantShroud-Seals provide extra effectiveness and protectionExtra-wide design provides additional shaft support and extra-large grease capacitySpherical OD

Tech Specs

Basic Outer Ring Size207
Bearing I.D.1-1/4"
Bearing O.D.72mm
Bearing TypeInsert Bearing
Bore ShapeRound
BrandTimken
Greasable / SealedGreasable
Inner RaceWide
Inner Ring Width1-31/64 Inch
Outer Race ShapeSpherical
Outer Ring Width.748 Inch
Shaft Lock TypeLock Collar

Application

MakeTypeModel
John DeereCotton Stripper7445 , 7460 , 748 , CS690 , CS770

Interchanges

  • 156030C91 (CNH)
  • AN220672 (JOHN DEERE)
  • INS-SXR-104
  • YG220NL
  • 173735C91 (CNH)
  • 710434
  • 1177309
  • UG207-20
  • 33051063
  • KMC33051063
  • KMC33-051-063
  • 1032225
  • 520089
  • 010-32225
  • 401CBA
  • WPS104GRC
  • 100828
  • YW220X1-1/4
  • F86214
  • EX207-20
  • VE220
  • 33-051-063
  • EW207-20S
  • UEL207-104D1W3
  • 1035-1-1/4DECG
